CU/XLPE/OS/PVC

Detail Kabel CU/XLPE/OS/PVC

CU/XLPE/OS/PVC adalah kabel yang digunakan untuk menghubungkan instrumen dan sistem kontrol untuk transmisi sinyal analog atau digital. Kabel ini tidak boleh dihubungkan langsung ke suplai listrik utama atau sumber impedansi rendah lainnya dan tidak dirancang untuk digunakan sebagai catu daya. Tidak cocok untuk aplikasi yang ditanam langsung.

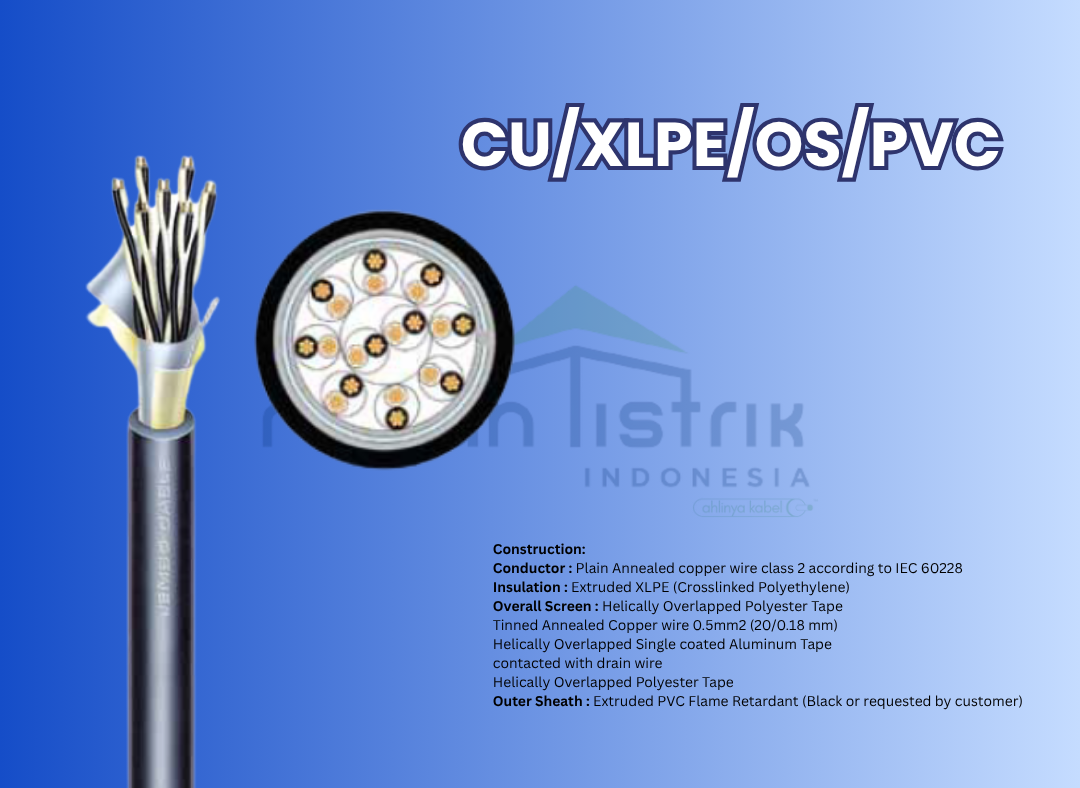

Construction:

Conductor : Plain Annealed copper wire class 2 according to IEC 60228

Insulation : Extruded XLPE (Crosslinked Polyethylene)

Overall Screen : Helically Overlapped Polyester Tape

Tinned Annealed Copper wire 0.5mm2 (20/0.18 mm)

Helically Overlapped Single coated Aluminum Tape

contacted with drain wire

Helically Overlapped Polyester Tape

Outer Sheath : Extruded PVC Flame Retardant (Black or requested by customer)

Triad Identification:

* 1 Triad	Black, White and Red
* Multi Triad	Black, White and Red with numbering
Amount of halogen acid gas	Max 17% ( IEC 60754-1 )
Limiting oxigen index ( LOI )	Min 30% ( IEC 60332-3 annex B )
Sunlight Resistance	UL 1581 section 1200
Oil Resistance	ICEA S-82-552
Flame Retardant	IEC 60332-1
Flame Propagation	IEC 60332-3 Cat. A, B, C

Design Voltage	300 V & 500 V
Insul Resistance	Min. 1000 MOhm.km
AC Test Voltage	300 V : 1000 V/1 min 500 V : 2000 V/1 min
Screen Resistance	Min. 1 MOhm/km
Min.Bending Radius	6 x OD ( fixed installation )
Temperature Rating	-40° C to 70° C
Symbol	CU/XLPE/OS/PVC or P1 T1 OS
Applicable Standard	Multitriad XLPE Insulated Instrumentation Cable Flame Retardant, UV Resistant According to BS EN 50288-7 : 2005 Voltage Designation 300 V & 500 V
P1 T1 OS	XLPE Insulated, Overall Collective Screen, Unarmoured Other Specification are available on request
Application	Suitable for connecting instrument and control system for analogue or digital signal transmission.These cables shall not be connected directly to mains electricity supply or other low impedance sources and not designed to be used for power supply.Not suitable for direct buried applications.
